Affordable Wind Turbine for Home
-
Rated Power:
9.0 kW
-
Operational Wind Speed:
3.0 m/s to 17.0 m/s
-
Compact Size:
6 m diameter
-
Low Cost:
50% cheaper than competitors

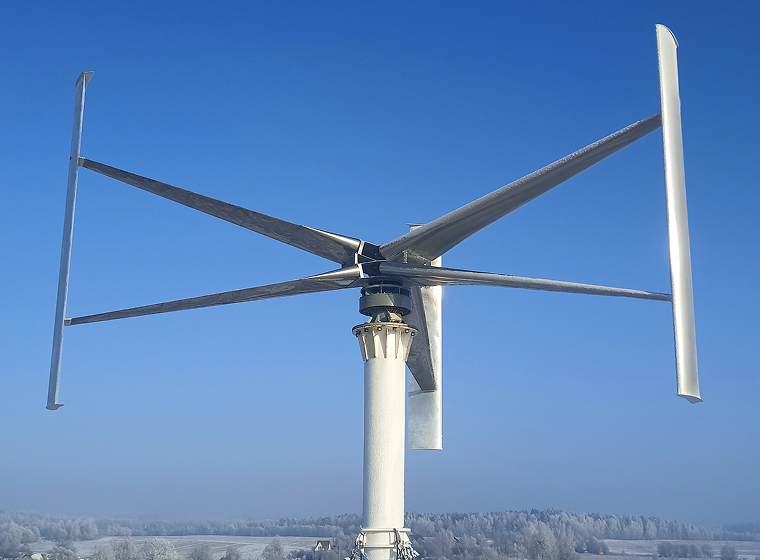

Inside Freen-9:
A Look at Innovation
-
Easy-to-Install Foundation
Prefabricated, non-buried foundation for simple and stable installation.
-
Lightweight Blades
Blade proportions ensure optimal aerodynamic performance, reduced vibration, and enhanced stability while remaining wildlife- and neighborhood-friendly.
-
High-Efficiency Generator
No gearbox. A permanent magnet generator, adapted from our proven models, ensures reliable operation with minimal friction losses.
-
Compact Rotor
The compact rotor size is tailored for home environments, delivering power with less noise and a visually refined design.
-
Low-Friction Components
Direct drive design reduces energy loss and extends lifespan.
-
Slow Rotation, Maximum Safety
Operates at 90 RPM – slow enough to ensure safety for humans and animals and maintain quiet operation.
-
No Wind Orientation
Thanks to its vertical-axis design, the turbine performs efficiently regardless of wind direction — no active orientation needed.
-

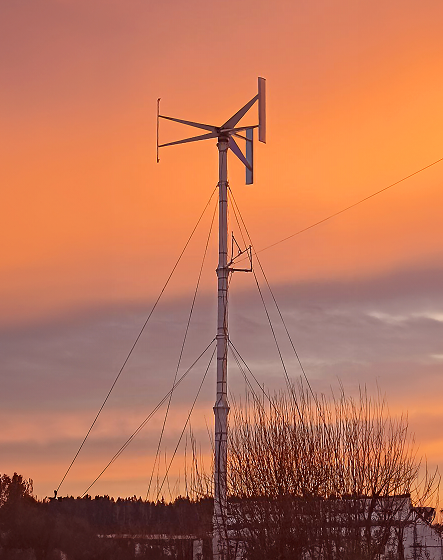

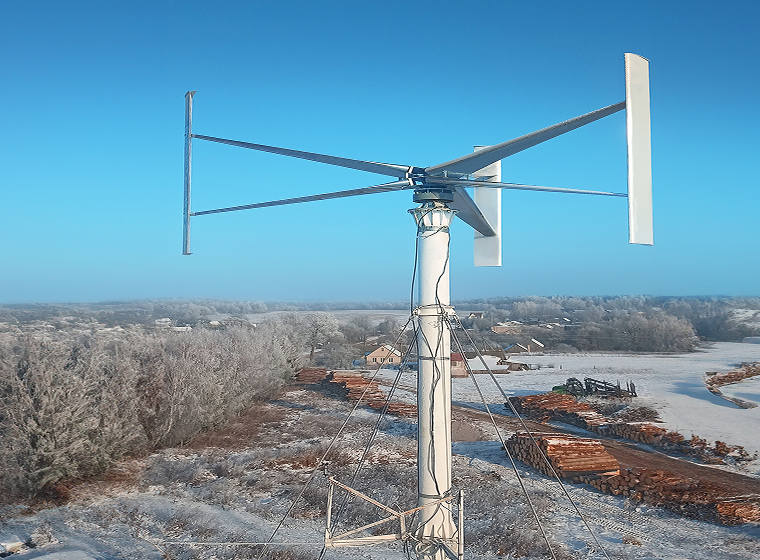

Monopole Tower
Easy to install, variable height available for different application types.
Freen-9: Built to Perform
Explore the specifications that make 9 kW wind turbine a game-changer.
Power Curve
Technical Parameters
- Turbine type VAWT (Vertical axis wind turbine)
- Rated power 9 kW
- Turbine diameter 6 m
- Turbine rotor height 4 m
- Tower height 4-18 m
- Total turbine height 20.6 m
- Turbine weight 650 kg
- Tower weight 2500 kg
- Turbine concept gearless, variable speed
- Rotor type Darrieus rotor
- Rotation direction counter clockwise
- Number of blades 3
- Swept surface area 24 m²
- Blade material aluminium
- Turbine speed average 90 rpm
- Generator Freen permanent magnet direct drive synchronous generator
- Grid connection AC load controller
- Brake System electromagnetic brake
- Cut-in wind speed 3.5 m/s
- Rated wind speed 14 m/s
- Cut-out wind speed 17 m/s
- Survival wind speed 36 m/s
- Remote monitoring Built-in controller
- Wind class IEC III, IV
- Noise level at 100 m 45 dB
- Surface installation area 36 m²
- Temperature range -25C° - +40C°
- Lifespan 20 years
Annual Energy Production
Annual energy production (AEP) is based on a Rayleigh wind speed distribution, K=2, t=15°C, P=1013 mbar, ρ=1.225
Annual Energy Production (AEP) values and power curves are indicative only, calculated under standardized assumptions. Actual energy output depends on site-specific wind conditions, installation height, turbulence, grid availability, and operating conditions, and is not guaranteed.
FREEN owns the design and technical documentation of the turbine.
Combine Freen-9
with Battery Storage
Smart energy system for your home.
-
Pair our 9-kilowatt wind turbine with Freen’s cutting-edge sodium-ion batteries for a hybrid system that ensures energy independence.
-
Use stored wind energy during low production periods or outages
-
Optimized for renewable sources, minimizing energy waste
-
Non-toxic, recyclable battery technology
-
Perfect for rural areas and homes with unreliable grid access
-
Compatible with most of modern PV systems
-
On-Grid Operation
-
Off-Grid Operation
Consult an expert to find the right fit.
contact usSmall Wind Turbines, Big Benefits
-
Optimized for Variable Multidirectional Winds
Unlike traditional horizontal-axis turbines, the Freen-9 requires no wind orientation mechanism, ensuring consistent performance while simplifying operation at wind speeds as low as 3 m/s.
-
Eco-Friendly Construction
Crafted from durable, recyclable materials, the Freen-9 minimizes environmental impact while ensuring a long operational lifespan and profitable scrapping after.
-
Reliable Backup Power
Whether for daily use or emergencies, the Freen-9 provides consistent energy to keep your home running, even during outages, becoming more efficient with energy storage systems.
Freen-9 in Action
Renewable energy tailored to your needs.
-
Urban Areas
Quiet and compact, ideal for residential and commercial buildings.
-

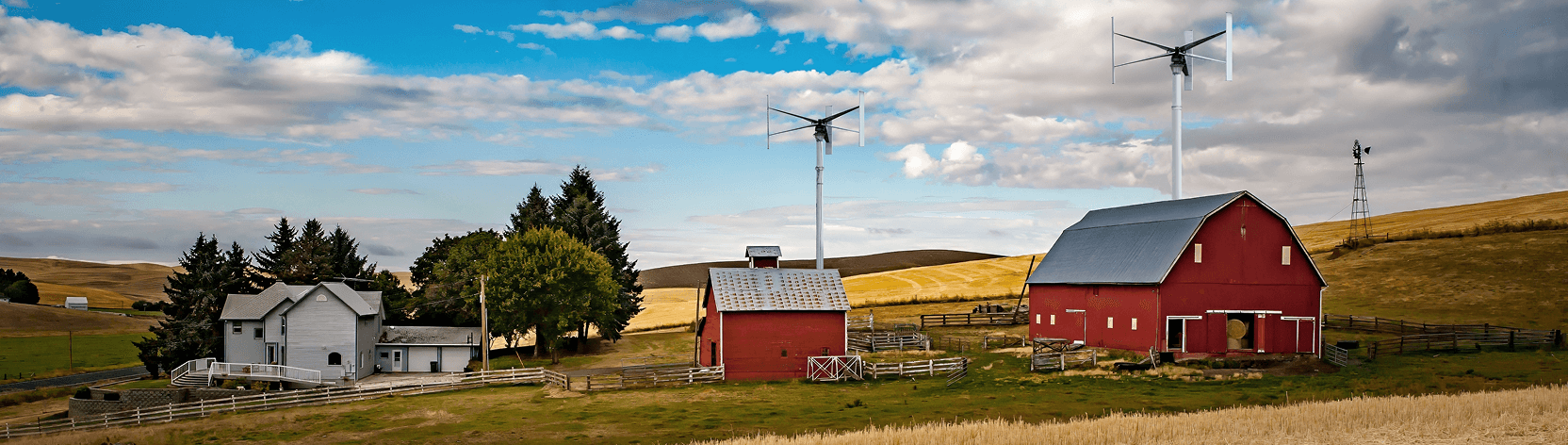

Remote Homes
Off-grid energy for cabins, farms, and rural properties.
-

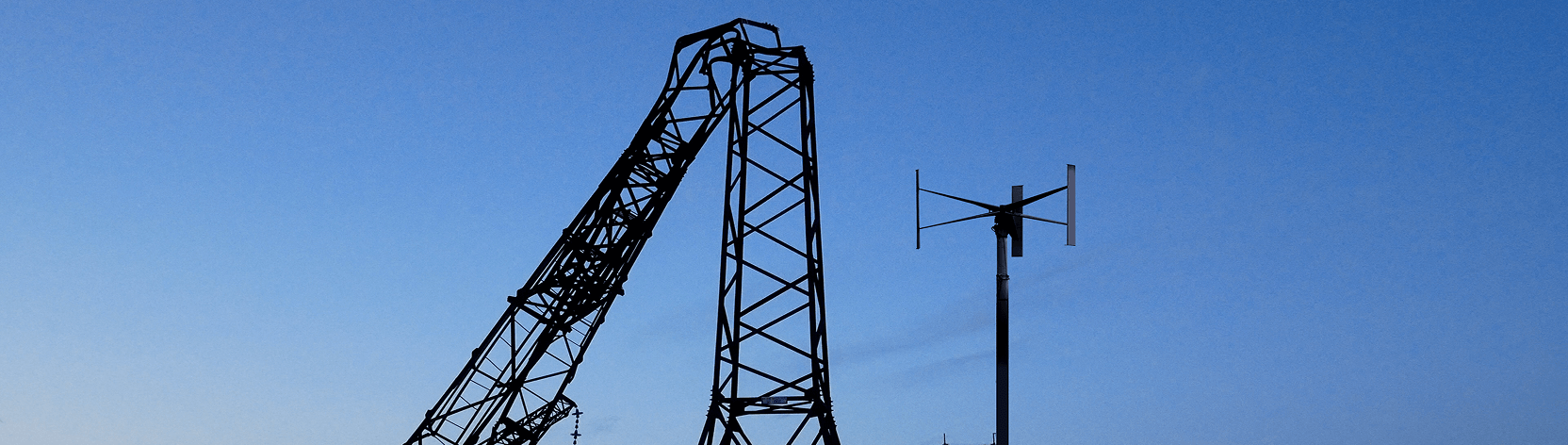

Emergency Backup
Reliable power during outages or natural disasters.
-
Sustainable Communities
Microgrids for small neighborhoods or shared facilities.
-

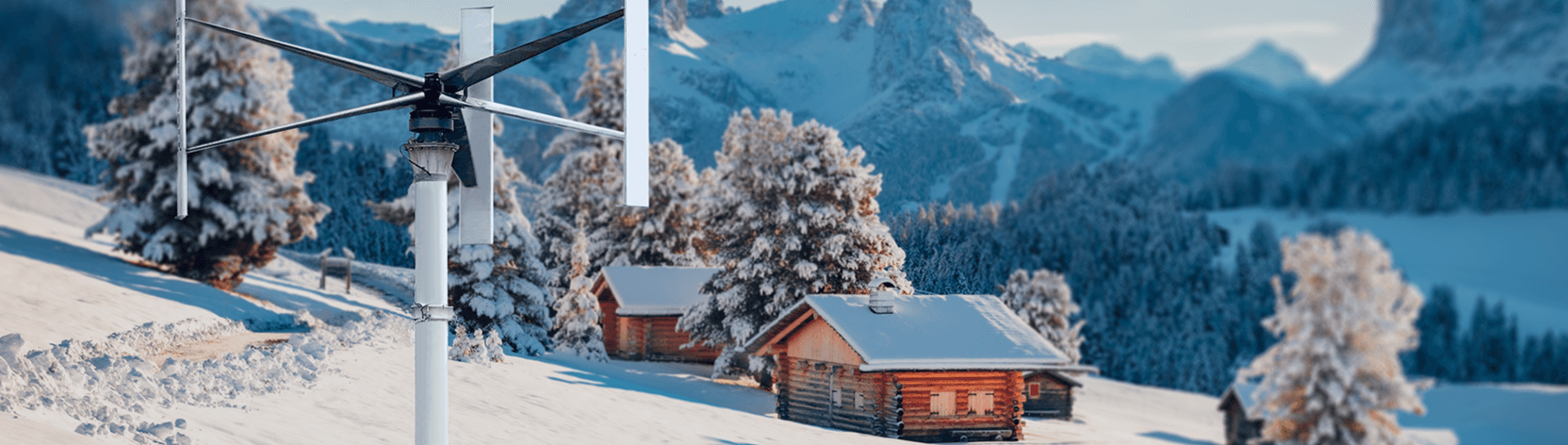

Eco-Friendly Tourism
Provide clean energy to off-grid lodges and retreats.
Freen-9 in action: Best choice for small energy system
Freen-9 is designed to deliver reliable, green energy for homes, hybrid systems, and commercial applications. Whether powering off-grid homes, supplementing hybrid energy systems, or reducing operational costs for businesses, Freen-9 provides a compact, efficient, and long-lasting solution.
Designed and manufactured in Estonia, Freen-9 home wind turbine meets the highest European standards for quality and performance. Our production process is backed by internationally recognized certifications, including EN 1090-1, ISO 9001:2015, and ISO 3834-2, ensuring superior reliability and durability.
Your Questions, Answered
Everything you need to know about Freen-9.
-
Yes! 9 kw generator wind turbines for the home is designed to work both on-grid and off-grid, as well as in hybrid systems that combine wind with battery storage or solar power. This flexibility makes it an excellent choice for homeowners and businesses looking to increase energy independence.
-
The Freen-9 operates at low noise levels, making it suitable for installation near homes and commercial buildings. Its vertical-axis design and soft blade technology minimize noise, ensuring quiet and efficient operation even in populated areas.
-
The Freen-9 9kw home wind turbine is compact and lightweight, making installation easier than traditional wind turbines. It requires a suitable wind location, a secure foundation, and grid or battery integration depending on the energy setup. Our team provides feasibility studies to help determine the best placement for maximum efficiency.
-
The turbine designed by FREEN engineering team. Its structural components manufactured in EU. Final assembly and quality control performed in Estonia. Backed by included manufacturer warranty for 5 years and long-term spare parts availability.
