Freen-H15 Horizontal-Axis Wind Turbine
A high-efficiency 15 kW wind turbine engineered for farms, businesses, and off-grid applications, maximizing wind energy production with a streamlined horizontal-axis design.
Engineered for High Performance
-
Rated Power:
15 kW
-
Operational Wind Speed:
from 3,5 m/s
-
Tower Height:
18-22 meters
-
Lifespan:
20+ years
Freen-H15 Features:
Smart Design, Superior Performance
-

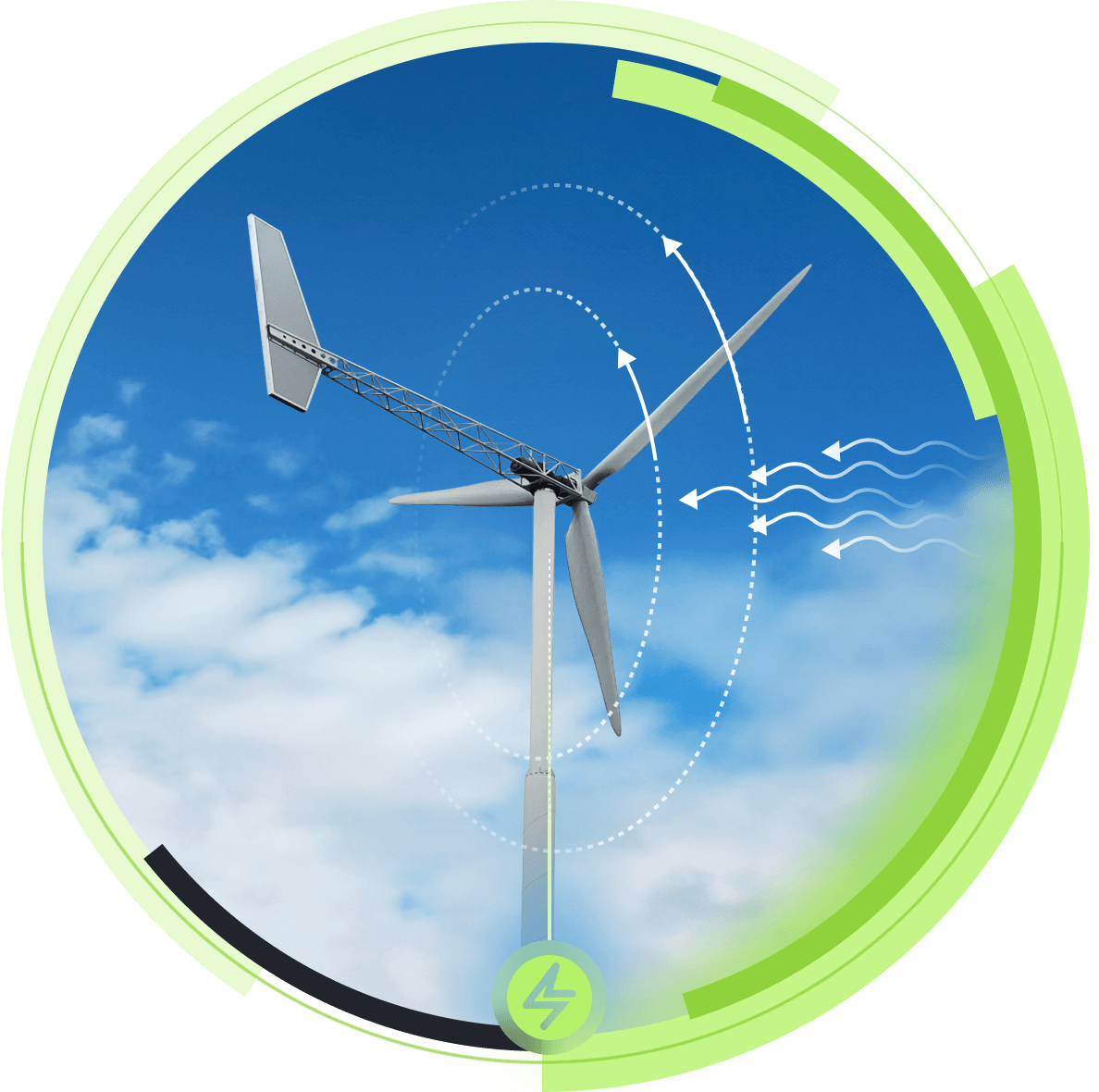

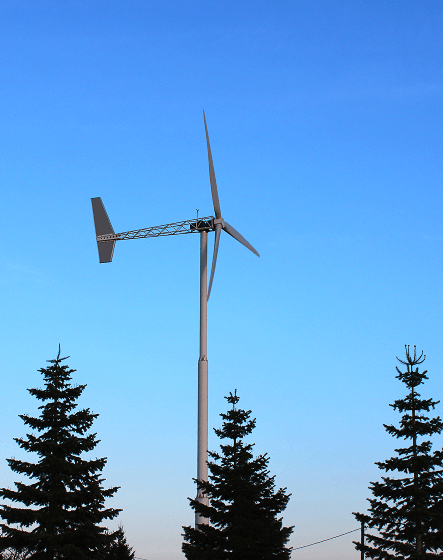

Tail-Fin Assisted Wind Tracking
Freen-H15 uses a free-yaw system with a precision-designed nacelle and tail fin. The turbine continuously aligns itself with changing wind direction, maximizing energy capture without the need for a powered yaw motor—making this 15 kW wind turbine a great choice for decentralized or rural energy systems.
-
Integrated Gearbox and Generator
The turbine’s asynchronous generator is directly coupled with a planetary gearbox for efficient energy transfer and steady RPM. This integrated design minimizes mechanical stress and optimizes performance under a wide range of wind conditions, ensuring long-term durability in a 15 kilowatt wind turbine setup.
-
Aerodynamic Rotor with Blade Tip Brakes
The 5.1-meter fiberglass blades feature a unique tip-brake system that activates automatically at high speeds. When centrifugal force exceeds a threshold, the blade tips pivot to reduce rotor speed—ensuring passive overspeed protection without external intervention. This is a key safety advantage for a 15 kilowatt wind turbine operating in changing wind conditions.
-
Fail-Safe Rotor Brake System
An electromechanical, spring-applied rotor brake is integrated with the generator. By default, it remains engaged and is only released by the control system—keeping the 15 kW wind turbine secure during grid failures or emergency stops. This setup ensures a high level of operational safety, particularly for installations near residential zones or critical infrastructure.
-
Intelligent Stall-Control Blade Geometry
The blade profile is engineered to induce aerodynamic stalling at high wind speeds, preventing excessive rotation. This passive design ensures consistent and safe operation even in gusty wind conditions—an ideal feature for a 15 kW residential wind turbine deployed in variable climates.
-
Built for Easy Maintenance
Designed with accessibility in mind, the Freen-H15 requires only basic annual servicing—simple bearing lubrication and visual inspections. Gearbox oil changes are needed just once every two years, minimizing downtime and lowering operational costs. These features make it especially appealing for those seeking a 15 kW wind turbine with low lifetime service needs.
15 kW Wind Turbine Designed for Performance
The Freen-H15 is a small wind turbine with a rated power of 15 kW, featuring a horizontal-axis design with a three-blade rotor and constant-speed operation. Designed for households, farms, and small businesses seeking a reliable renewable energy solution, it efficiently harnesses wind power.
Power Curve
Technical Parameters
- Turbine type HAWT (Horizontal axis wind turbine)
- Rated power 15 kW
- Turbine diameter 11 m
- Tower height 18 m or 22 m monopole tower
- Total turbine height 24 m
- Turbine weight 1000 kg
- Tower weight 3500 kg for 18 m, 4000 kg for 22 m
- Turbine concept upwind, passive yaw, nacelle with rotor and tail
- Rotor type horizontal-axis rotor
- Rotation direction clockwise
- Number of blades 3
- Swept surface area 95 m²
- Blade material fiber glass / polyester, tip brake mechanism stainless steel
- Blade type fixed angle, upwind, stall control and tip-brake
- Turbine speed 71 rpm, constant
- Generator asynchronous, planetary gearbox
- Grid connection direct (thyristors + reactive power compensation)
- Brake System stall, electro mechanic failsafe rotor brake, tip-brakes
- Cut in wind speed 3.5 m/s
- Rated wind speed 11 m/s
- Cut out wind speed no cut out
- Survival wind speed 42.5 m/s
- Remote Monitoring optional
- Wind class IEC II
- Noise level at 60 m 45 dB
- Surface installation area 1 m²
- Temperature range -25C° - +60C°
- Lifespan 20 years
Annual energy production (AEP) is based on a Rayleigh wind speed distribution, K=2, t=15°C, P=1013 mbar, ρ=1.225 kg/m3
Reliable Energy Starts with Intelligent Design
-
Steady Performance
The Freen-H15 delivers high energy yield with its aerodynamic 5.1-meter blades and optimized rotor area, ensuring exceptional output even in moderate wind conditions.
-
Flexible Integration
Designed for versatility, the 15 kW wind turbine supports both on-grid and off-grid configurations, making it ideal for rural sites, residential areas, or scalable wind farms.
-
Long Lifespan
With passive overspeed protection, easy maintenance, and durable, recyclable components, Freen-H15 combines environmental responsibility with lasting performance.
Where Freen-H15 Wind Turbine Makes an Impact
Practical wind power for demanding environments
-

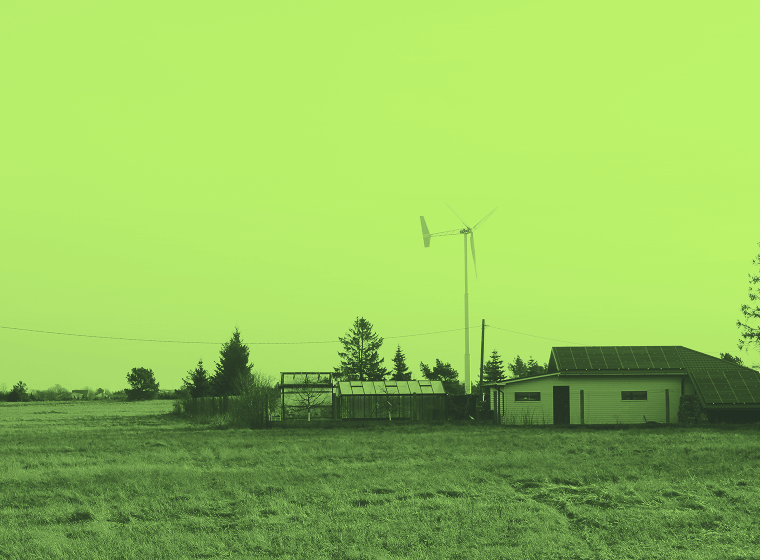

Rural Greenhouses, Remote Farming and Livestock Operations
Ideal for small to mid-sized farming needs, the Freen-H15 provides dependable power for irrigation pumps, electric fencing, greenhouse climate systems, and other agricultural infrastructure in areas without reliable grid access.
-

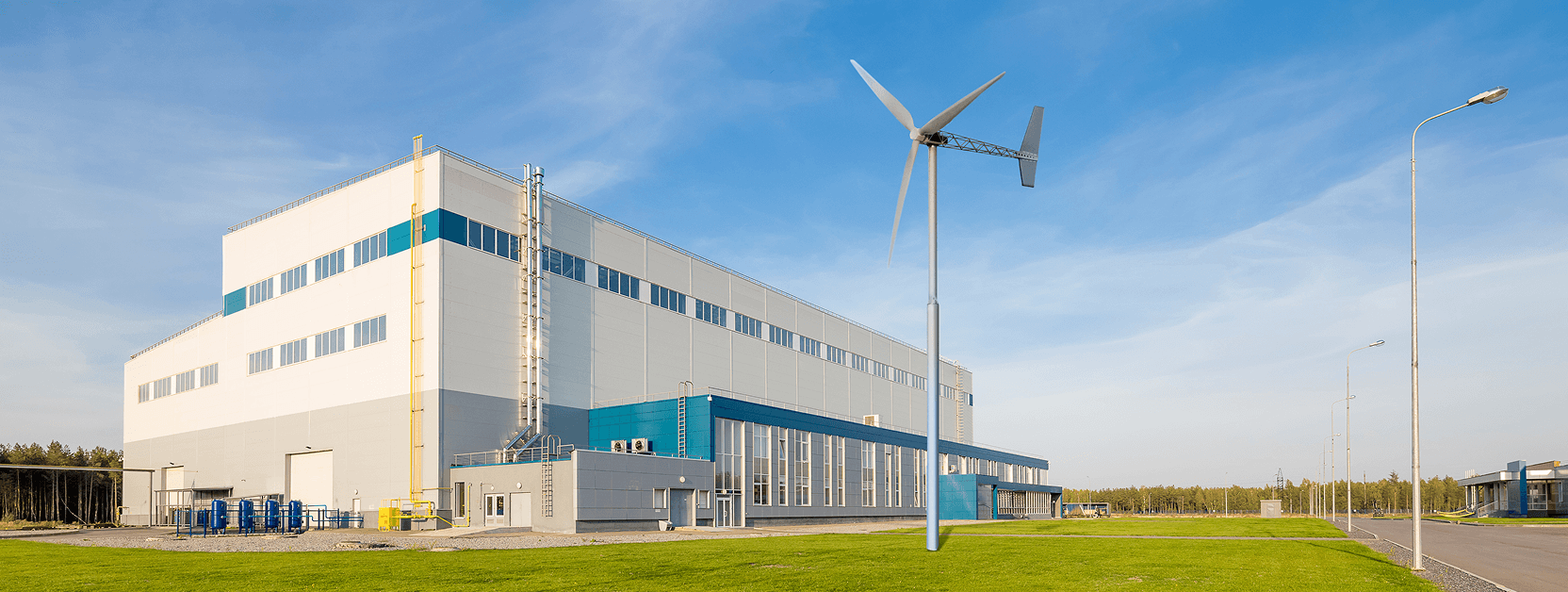

Off-Grid Manufacturing Plants
With its 15 kW capacity and steady energy output, the Freen-H15 supports production lines and machinery in remote or rural manufacturing hubs, helping reduce energy costs and dependence on fossil fuels.
-

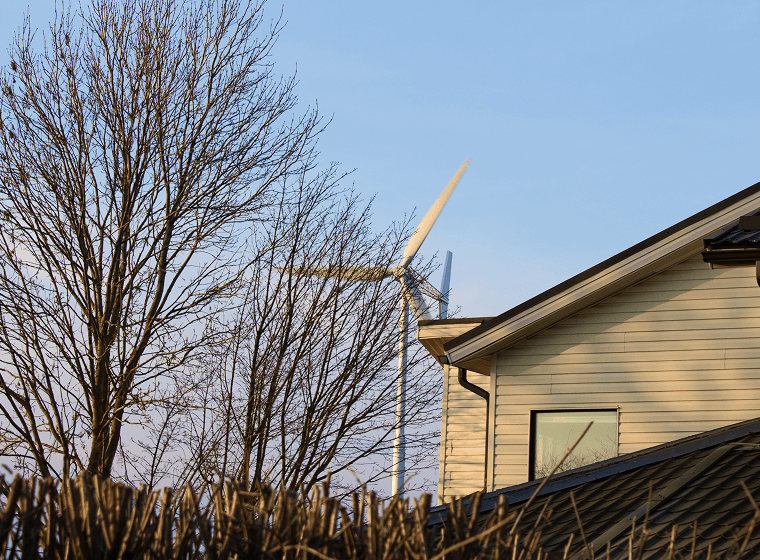

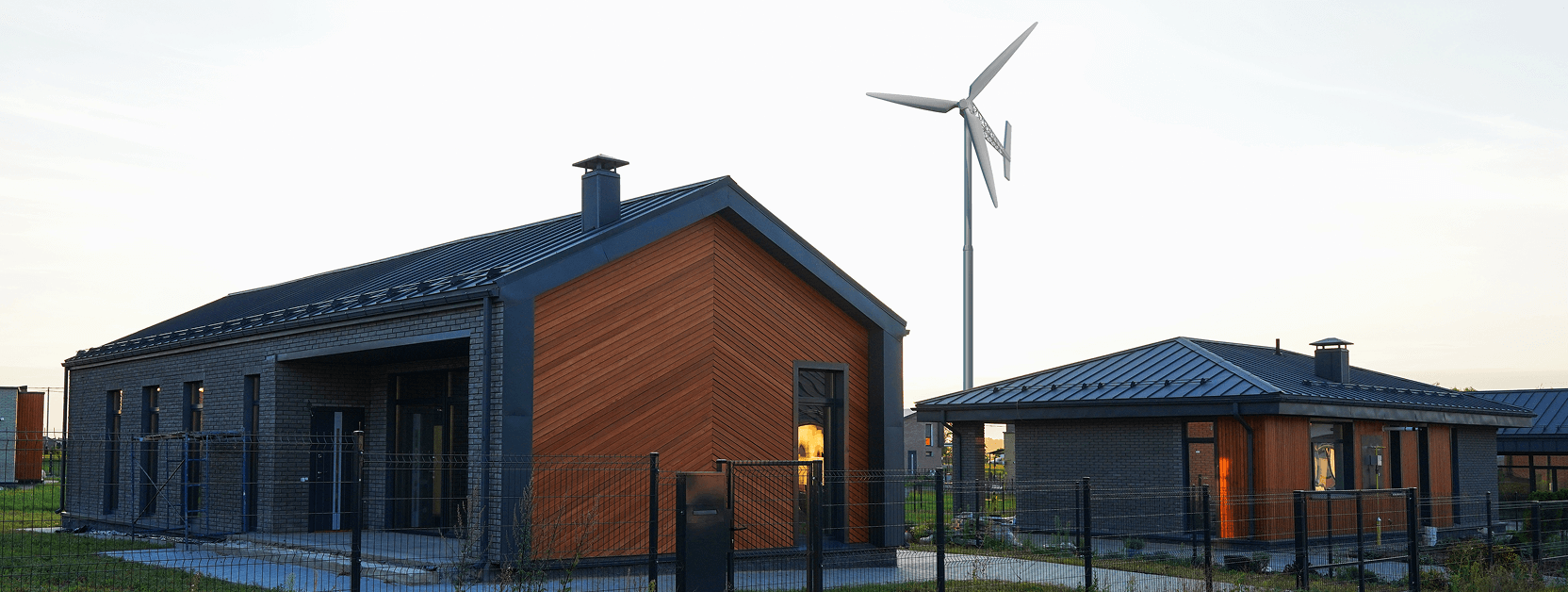

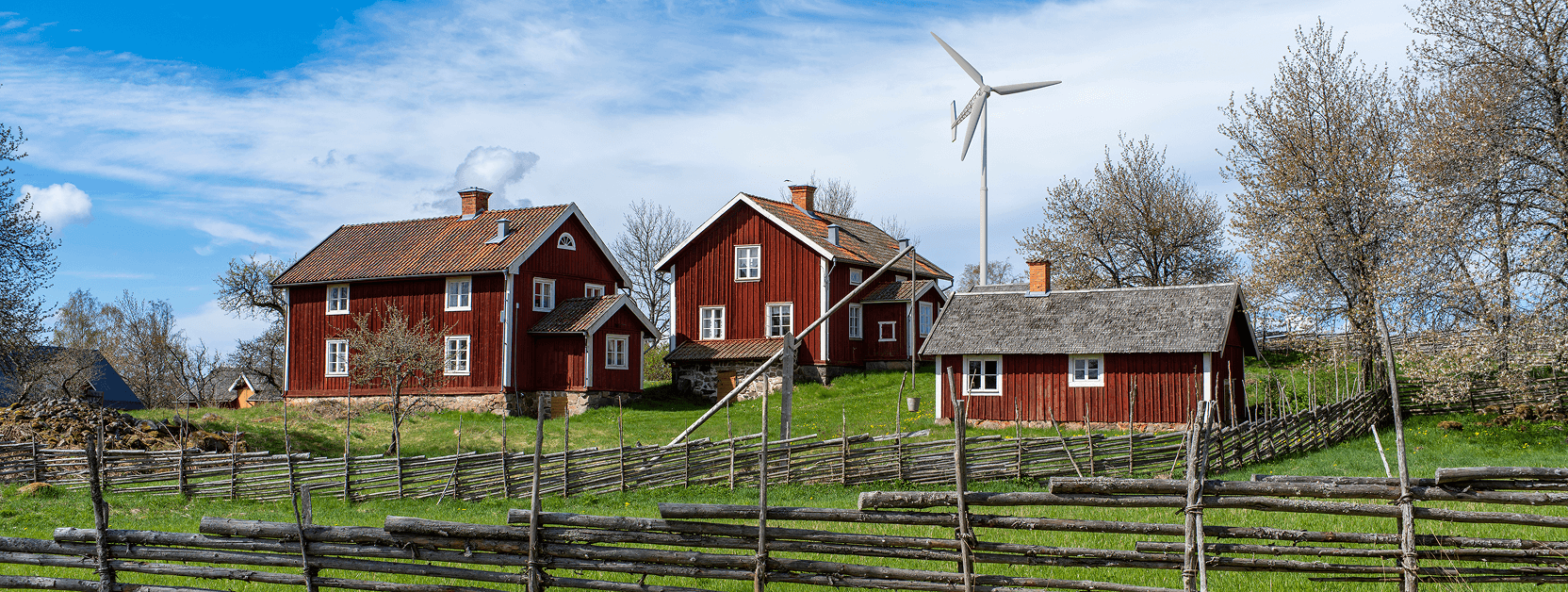

Rural and Remote Homes
A reliable choice for powering individual homes, farms, and eco-retreats, the Freen-H15 delivers steady electricity for appliances, lighting, and heating—even in remote areas or during grid outages.
-

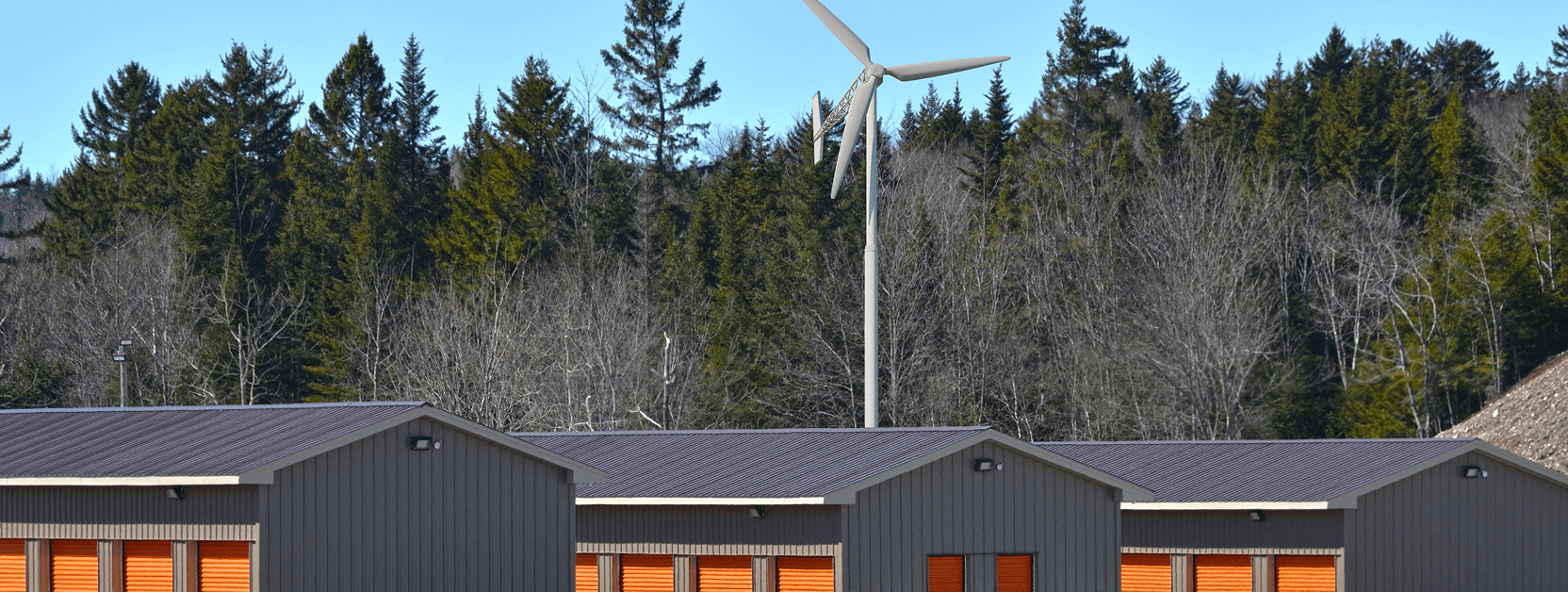

Off-Grid Commercial Properties
Perfect for powering small businesses and remote commercial sites, the Freen-H15 provides cost-effective, renewable electricity for operations like lighting, HVAC, and security systems.
-

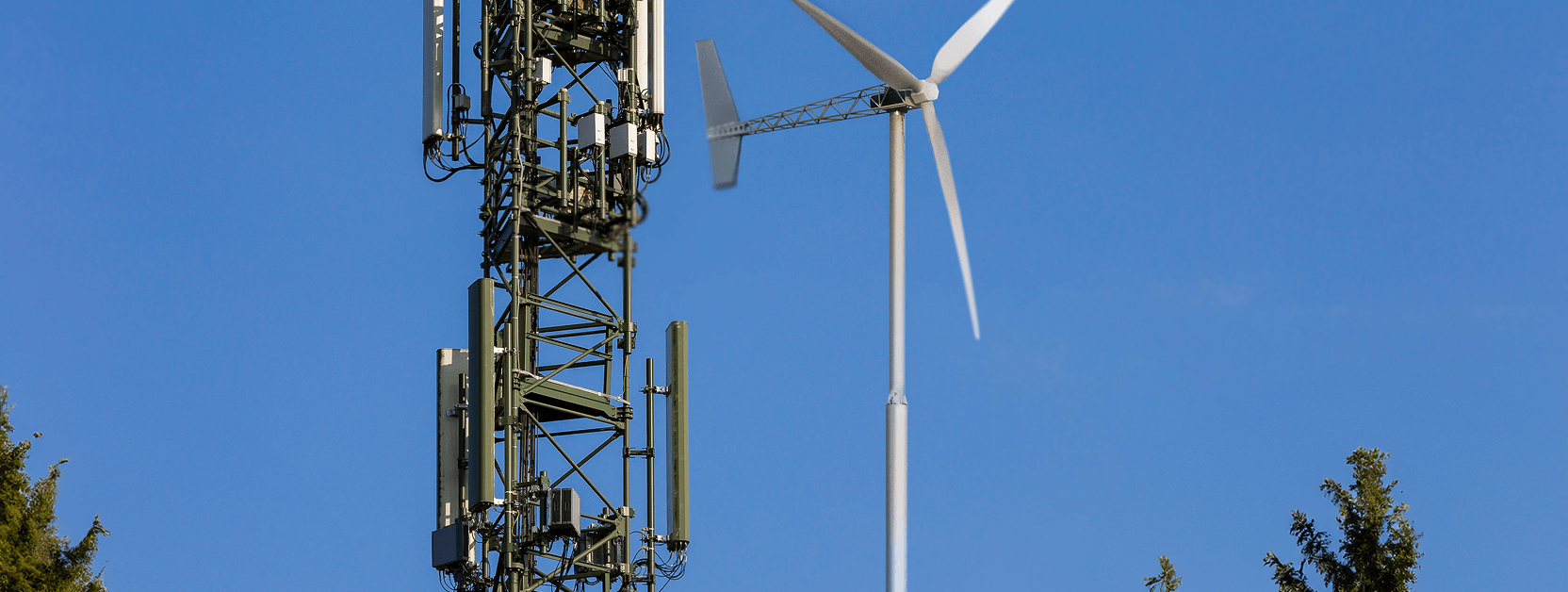

Off-Grid Communication Towers
The Freen-H15 is well-suited to power telecom towers in isolated or rural areas, ensuring uninterrupted communication services through stable, continuous power generation.
-

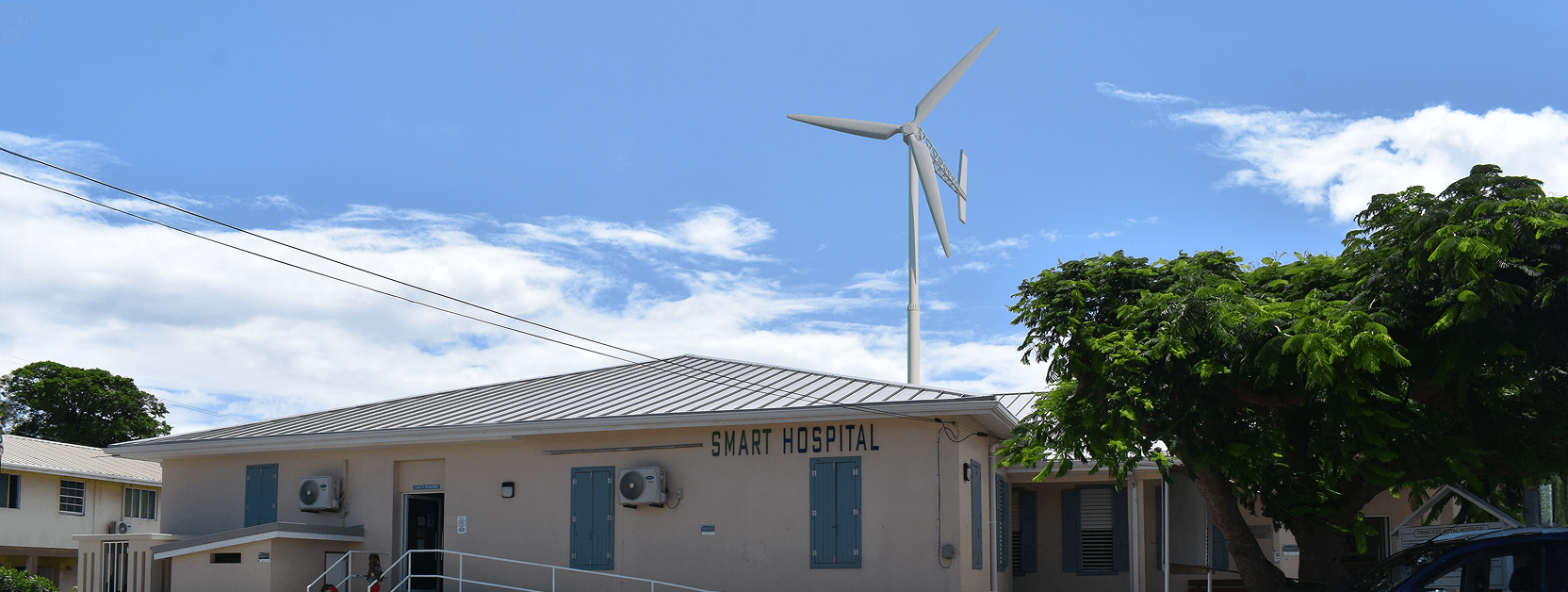

Remote Healthcare Facilities and Clinics
For clinics and emergency stations far from reliable infrastructure, the Freen-H15 offers vital energy support for essential medical equipment and refrigeration during power outages or emergencies.
-
Village and Community Power Systems
The Freen-H15 can power small-scale microgrids for rural communities, enabling collective access to clean electricity and improving quality of life in off-grid environments.

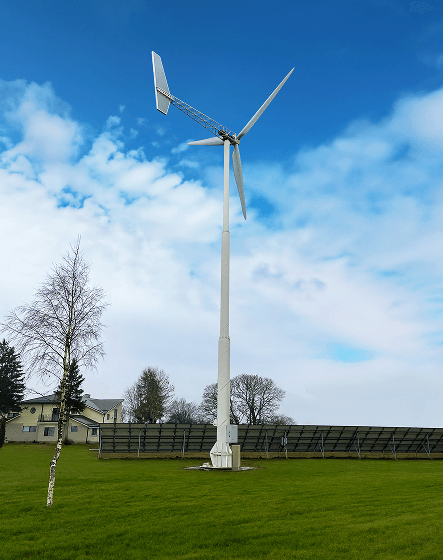

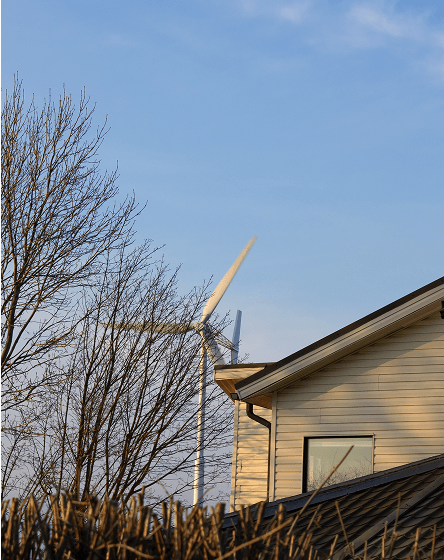

Freen-15 in Action

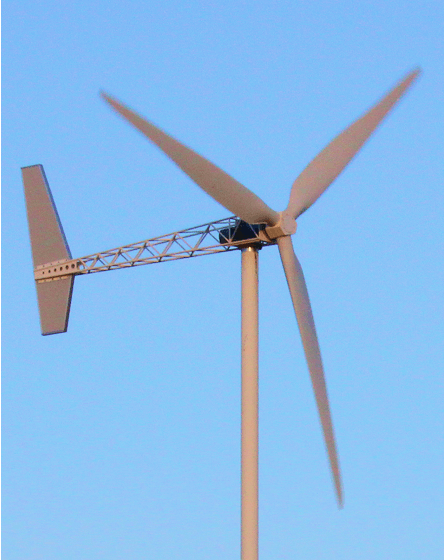

The Freen-H15 horizontal-axis wind turbine is engineered for long-term performance and durability across a wide range of wind conditions. Whether installed in commercial, agricultural, or industrial settings, it offers a reliable, efficient, and cost-effective renewable energy solution for sites that demand consistent output.
Proudly developed and manufactured in Estonia, the Freen-H15 meets the highest European quality and safety standards. Our production process is certified under EN 1090-1, ISO 9001:2015, and ISO 3834-2—ensuring every turbine delivers the reliability and precision that modern energy systems require.
Frequently Asked Questions
Everything you need to know about Freen-H15.
-
HAWTs, like the Freen-H15, use a yaw system to track wind direction, making them highly efficient for locations with steady wind flow. VAWTs capture wind from any direction but may have lower efficiency in high-wind areas.
-
Farms, commercial buildings, and industrial sites with steady wind sp[KS1] eeds and open landscapes are ideal. A proper wind assessment ensures optimal placement and performance.
-
Yes! Freen-15 can be combined with solar energy and battery storage to create a hybrid energy system.
-
The suitability of a 15 kilowatt wind turbine depends on your location’s average wind speed, available installation space, and your energy consumption needs. At Freen, we offer a complimentary wind potential assessment to help you determine if the Freen-H15 is a viable and efficient option for your property or project. Our experts will analyze local conditions and provide personalized recommendations.
-
Both vertical-axis and horizontal-axis turbines have their advantages, depending on your site's wind patterns, available space, and usage requirements. Vertical turbines are more compact and work well in turbulent or variable wind, while horizontal turbines like the Freen-H15 offer high efficiency in steady wind conditions. Not sure which one is better for your needs? Schedule a free consultation with our team—we’ll help you choose the best solution.
-
If you're looking for a 15 kW wind turbine for sale, it's important to understand that the 15 kW wind turbine price can vary depending on site requirements, installation type, and any additional system components like inverters or battery storage. At Freen, we provide full package offers tailored to your energy needs. Contact us for detailed pricing, financing options, and support with planning and installation
